Our Machinery
Banner Mold & Die, Co. Inc.
Our well-equipped facility has a large number of machines which allow us to handle most any job suited to our industry.
Our highly skilled employees allow Banner Mold and Die Co., Inc. to excel in what we do, and make us your first choice to handle you injection mold manufacturing and repair needs.
High Speed Machining Centers

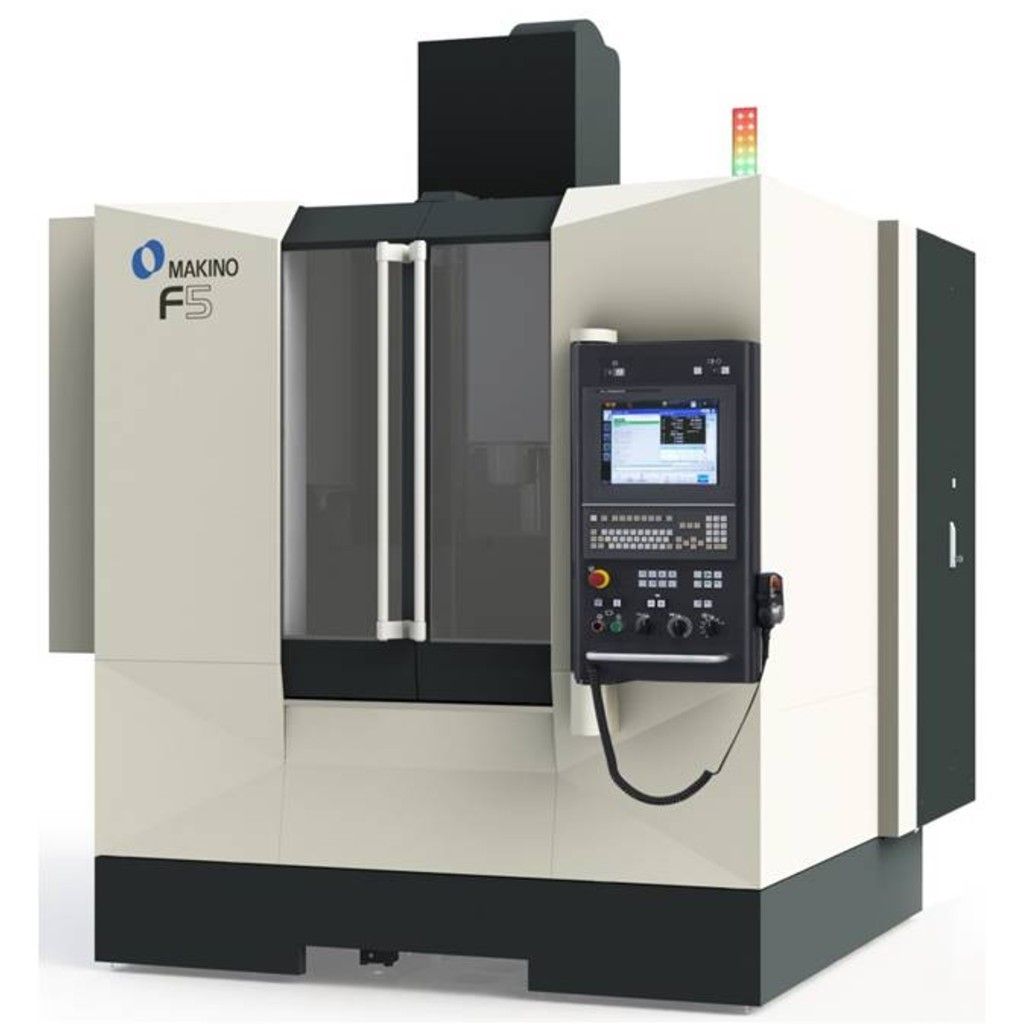

(2) Makino F5
(2) Vibra-Free HD by Compumachine Inc.
32,000 RPM Spindle
1400 IPM Feedrate
28 Auto Tool Change
Flood Coolant and Oil Mist Spray
Max Travel: 45″ X axis, 24″ Y axis, 22″ Z axis
CNC Machining Centers
(1) Yama Seiki VP2012HD
Max Travel: 78″ X axis, 47″ Y axis, 30″ Z axis

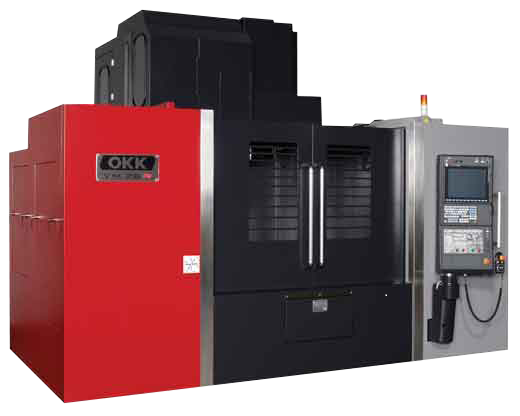

(1) OKK VM76R
Max Travel: 60″ X axis, 30″ Y axis, 26″ Z axis
(1) Doosan MYNX 5400
(1) Doosan DNM 570
(1) Makino S56
(2) Vibra-Free Graphite Machining Center
40,000 RPM
EDM department
Wire
(1) Agie Charmilles Cut 30P
Travel: 23.6″ X, 15.7″ Y, 13.7″ Z
(1) Charmilles Hole Popper
(1) Sodick AQ327L
Sinker
(1) Sodick AG60L
(1) Sodick AD55L
(1) AGIE Elox Mondo Star 50
(1) AGIE
Elox
Max Travel: 23.6″ x axis, 16.5″ y axis, 14.5″ z axis
lathe department
CNC

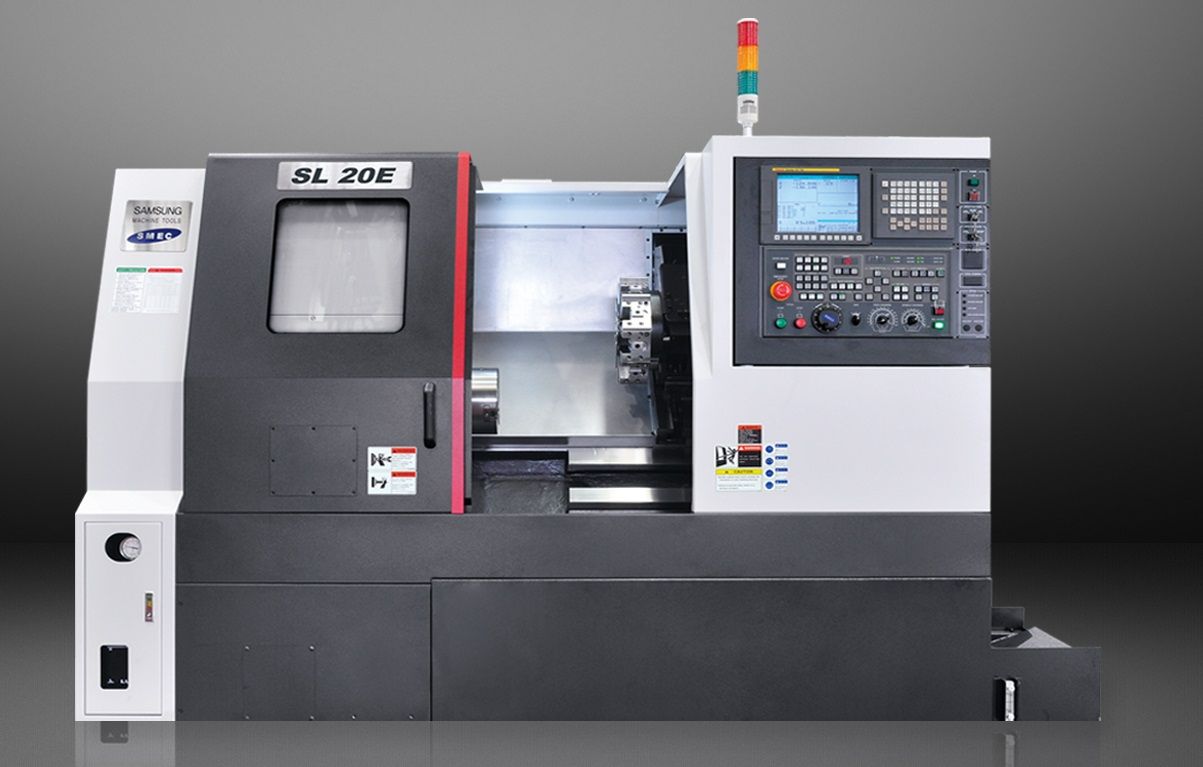

(1) Samsung SL20E
Swing Over Bed: 17.7″
Max Turning Diameter: 11.8″
Max Turning Length: 20.5″
Spindle Speed: 4,000 RPM
Manual
1 Monarch
3 Okuma
1 Colchester
Max Swing: 25″
Surface Grinding Department
(1) Okamoto ACC 20-40

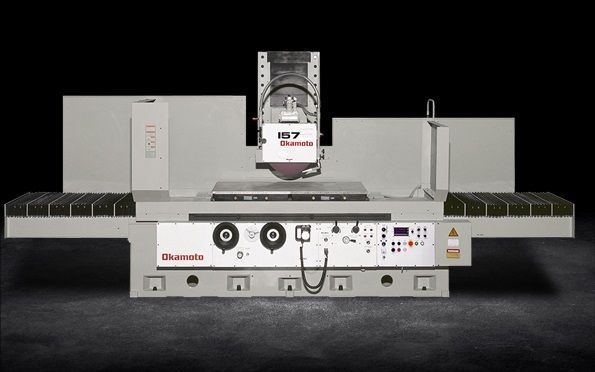

(2) Okamoto PSG-157
(1) Okamoto 8-20DX
(8) Reid Surface Grinders
(1) Mitsui 6x12
Maximum Capabilities: 5″ wide wheel, water cooled, 28″ x 60″ travel
gun drills

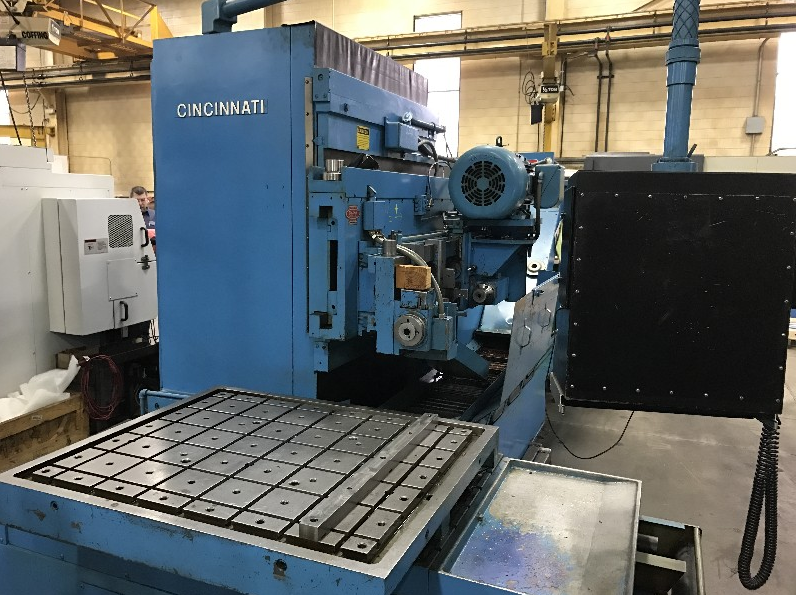

(1) Cincinnati/Dehoff CNC Gun Drill
(1) Ward-Riddle / Universal Boring Machine
(1) Beyer Drill-Matic
Maximum Drill Size: 2″ Diameter, 30″ Drilling Stroke

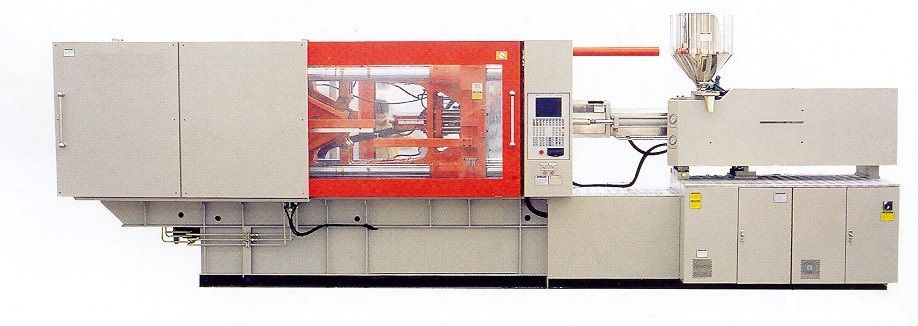

Molding Department
Ingersol-Rand 700 ton injection molding machine reserved for mold diagnostics
Van Dorn 150 ton injection molding machine reserved for sample cavities
Milling Machines

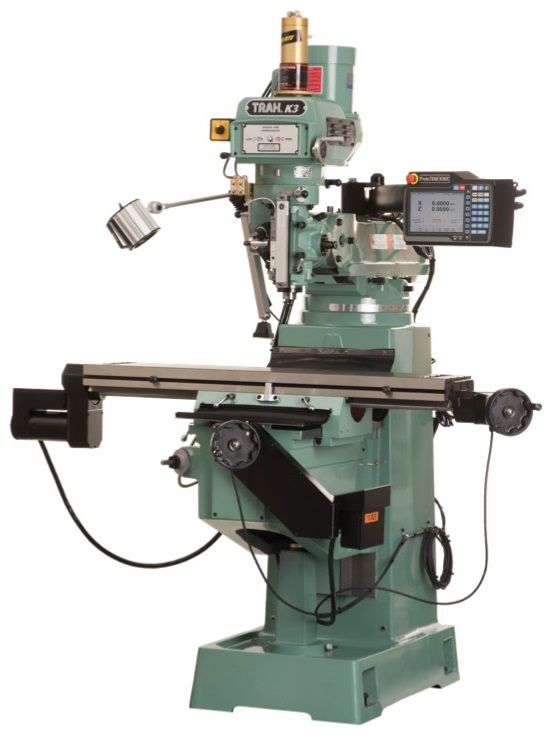

(1) Trak K3 (2-axis)
(1) Trak DPMRX3 (3-axis)
(8) Bridgeports
(1) Lucas Boring Mills
Miscellaneous
1 Keyence XM CMM
Measuring Machine
Solid Works 2024
Mastercam 2024, 8 seats

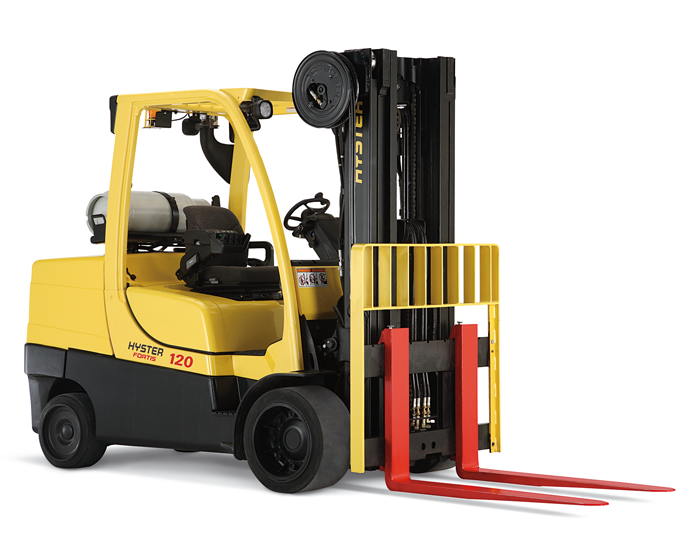

Forklifts up to 10,000 lb capacity
Chevrolet Truck, 4,000 lb capacity
2 Bead Blasters
10 Cutter Grinders
4 Horizontal Band Saws – 31″ x 31″ maximum capacity
3 Vertical Band Saws
1 Airco AC/DC TIG Welder
1 Miller MaxStar 200 Portable TIG Welder
